Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
SPK6101FCEVG

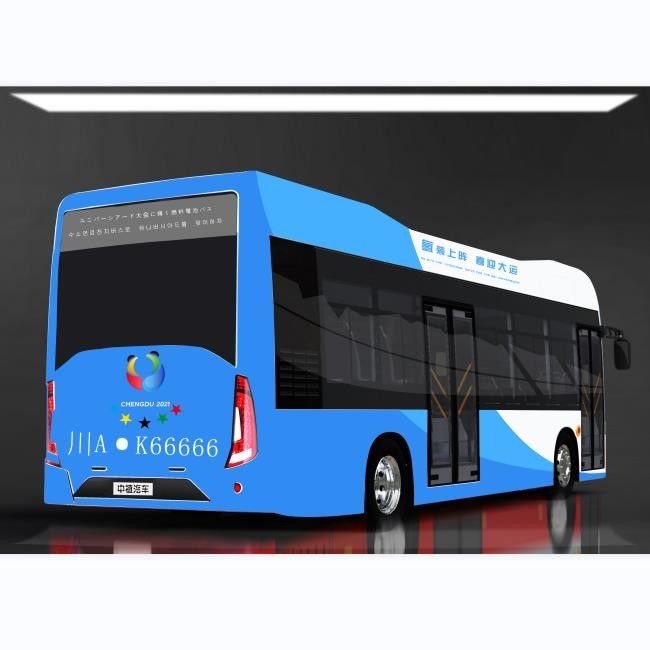

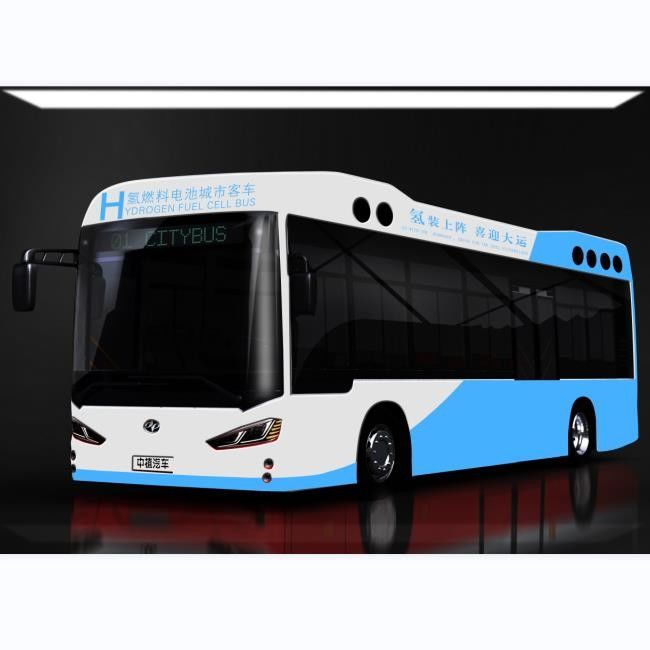

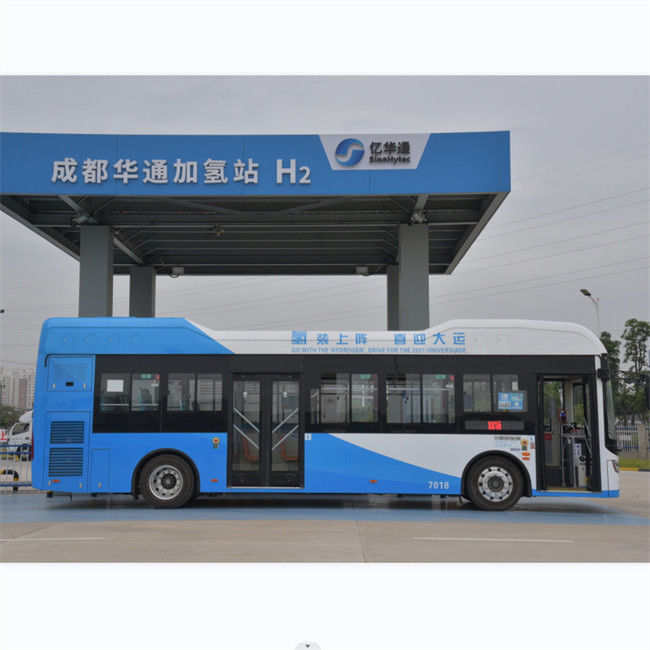

Green Travel 10.5m 27 Seats 0 Emission Hydogen Fuel Cell City Bus LHD
Hydrogen fuel cell city bus series advantage:
Environmental protection
The energy conversion rate reaches 53%~55%, which is three times of the thermal efficiency of ordinary internal combustion engine. And the reactant is only electricity, heat and water, zero emission and zero pollution.
Long driving range
The hydrogen refueling time is only 10-15mins, and driving range under full load condition is over 400km.
Convenient Operation
Ergonomics central console, visual CAN bus instrument, Humanized button making it easy to operate.
Safe and reliable
Leading level of high-performance fuel cell battery power system and electric drive system in the industry. L ow temperature start, trouble-free driving experience.
Specs
| Overall specs | Passenger capacity | 79/18-27 |
Motor / battery specs |
Max.power(kw/rpm) | 140 | |
| Vehicle size (mm) | 10485×2500×3430 | Max. torque (N.m/rpm) | 1100 | |||
| Wheel base (mm) | 5800 | Battery capacity | 52.99 | |||
| Front/Rear overhang | 2235/2450 | |||||
| Front/Rear tread | 2098/1870 | Hydrogen fuel-cell system | Fuel cell Max power(kw) | 42 | ||
| Approach/Departure(º) | 7/8 | Cylinder capacity (L) | 140L×6 | |||
| Max. Grade-ability(%) | ≥20% | Gas capacity in weight(kg) | 20.1 | |||
| Top speed (km/h) | 69km/h | Fuel feeding time(min) | 8-15 | |||
| Curb weight (kg) | 11150 | Fuel feeding pressure(MPA) | 20-35 | |||
| Gross weight (kg) | 16500 | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | DANA | ||||
| Rear axle | DANA | |||||
| Transmission | Auto transmission | |||||
| Suspension | Air bag | |||||
| Steering | Integral power steering, elector-hydraulic power steering | |||||
| Braking | Front disc and rear drum ; dual circuit air brake, WABCO ABS,slack adjuster | |||||
| Tyre | 275/70R22.5 18PR steel rim Tubeless radial tire | |||||
| Battery | Maintenance-free type | |||||
| electronics | AC | 22000kcal/h | ||||
| Defroster | Electric defroster | |||||
| Instrument | Bus instrument, English system | |||||
| Audio-system | MP5 TV | |||||
| Lights | Front and rear combination light. Fog light. | |||||
| Monitoring system | CCTV system with 5 cameras | |||||
| Bus facilities | Body | Monocoque | ||||
| Passenger door | Front and middle aluminum swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 26 passenger seats | |||||
| Interior | PVC duct, PVC composite side plate. | |||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area, wire connector for payment machine and WIFI, travel record with GPS | |||||
FAQ:
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.
3. Spare parts including various charger for EV.
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
