12m Pure Electric City Bus low floor city bus 47 seats single deck bus

12m Pure Electric City Bus low floor city bus 47 seats single deck bus

Silent Diesel Powerplant

4L Silent Diesel Powerplant

Stamford Alternator Silent Diesel Generator

Place of Origin:

Chengdu,China

Brand Name:

ZEVAUTO

Certification:

ISO,CE,3C

Model Number:

CDL6121URBEV

Contact Us
Request A Quote
Product Details
Product Name:
Electric City Bus
Keyword:
Low Floor City Bus
Vehicle Size (mm):
12000*2500*3140
Wheel Base (mm):
6000
Front/Rear Overhang:
2650/3350
Front/Rear Tread:
2040/1860
Approach/Departure(º):
7/7
Max. Grade-ability(%):
≥15%
Top Speed (km/h):
69km/h
Battery Capcity:
315 Kwh
Rated / Max. Power (kw):
90/240
Rated/ Max. Torque(N.m):
1200/2500
Full Charge Time:
Within 2h
Braking:
Front And Rear Disc
Highlight:

Silent Diesel Powerplant

,

4L Silent Diesel Powerplant

,

Stamford Alternator Silent Diesel Generator

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
nude packing
Delivery Time
20-30 working days
Payment Terms
TT
Supply Ability
10000units/month
Product Description
Description

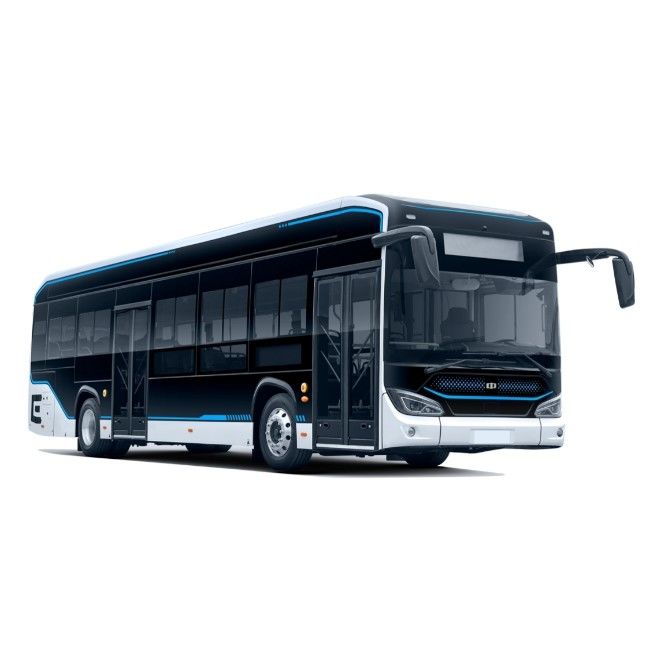

12m pure electric city bus low floor city bus 47 seats floor zero emission city bus single deck bus.

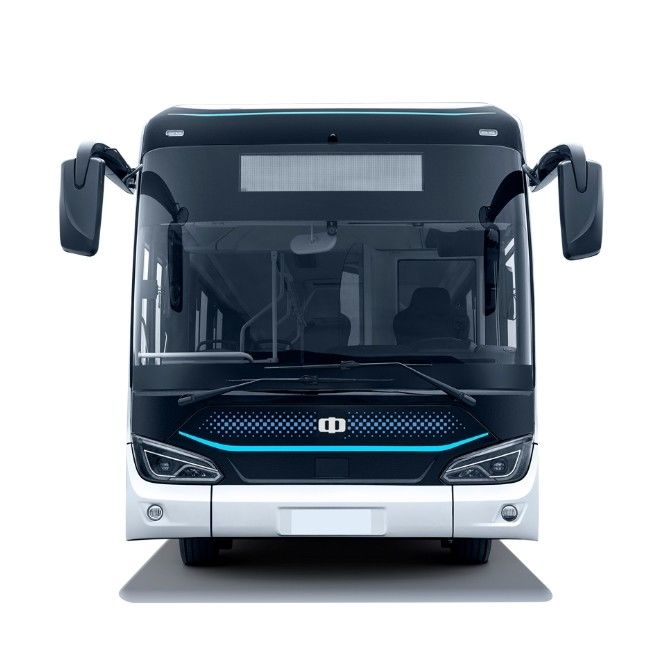

The large curved design makes the front face strong and powerful, and the V-shaped lines on the front face are dynamic and smooth. It mathes the industry- leading wheel side electric drive axle system, and adpots a low-floor, three door dtructure design. It has the advantages of full aisles and large space.

Product Paramenter
Model
CDL6121URBEV
Appearance parameters
Vehicle dimension (mm):
12000*2550*3225
Maximum speed(km/h)
69
Number of seats (persons):
22-47 seats, may change with seat layout door arrangement,
Power battery brand
CATL,CALB
Steering
LHD/RHD
Battery Capacity
350kwh, LiFePo4
Transmission
Auto transmission
Suspension
Leaf Spring



  Wheel base(mm)





  6200



  AC



  With

  Body Structure



  Monocoque   Floor Structure   Full low floor
Mileage(A/C on, 65% loaded):

280-650km

May differ slightly, subject to actual running temperature, road condition, slope, driving behavior etc.



Interior display

A Comfortable, Intelligent, And Safe Driving Environment

12m electric city bus with modern design, every details is meticulously considered with combine of ergonomy and comfort, such as nail-free design for whole vehicle, aesthetic celling with ambient lighting, streamlined hand holders, neat design of hidden screw, handrails attached to sidewall instead of the floor, all to render you a pleasant and quiet journey.



12m Pure Electric City Bus low floor city bus 47 seats single deck bus 0

Advantages
  • Environmentally friendly with zero emission.
  • Powerful, matched with high-power drive motor, the gradeability can reach 15%
  • Reliable and durable vehicle.
  • Safe and comfortable driving experience.
  • Easy maintenance
  • Integrated control for driving at ease
  • The electric city bus with humanization design, high operation stability, excellent performance and reasonable internal layout to extend passenger's standing area.
  • Concise suspended hanging design of LED.
  • Openable front bumper for easy maintenance.
  • Delicate and neat layout of wiring harness.
Customization
  • Electric City Bus length:12m optional
  • Interior accept customization.
  • Cushioned passenger seats come as optional to meet the needs of different customer.
  • Passenger seats and curtains can be selected according to customer needs.
  • Solid Painting design. Color:optional
Company Info



Headquarted in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. From it's foundation in 2006,

ZEV's culture of continuois innovation has made it a leading manufacturer in China. Depending on the research platforms including the enterprise technology center, test center.

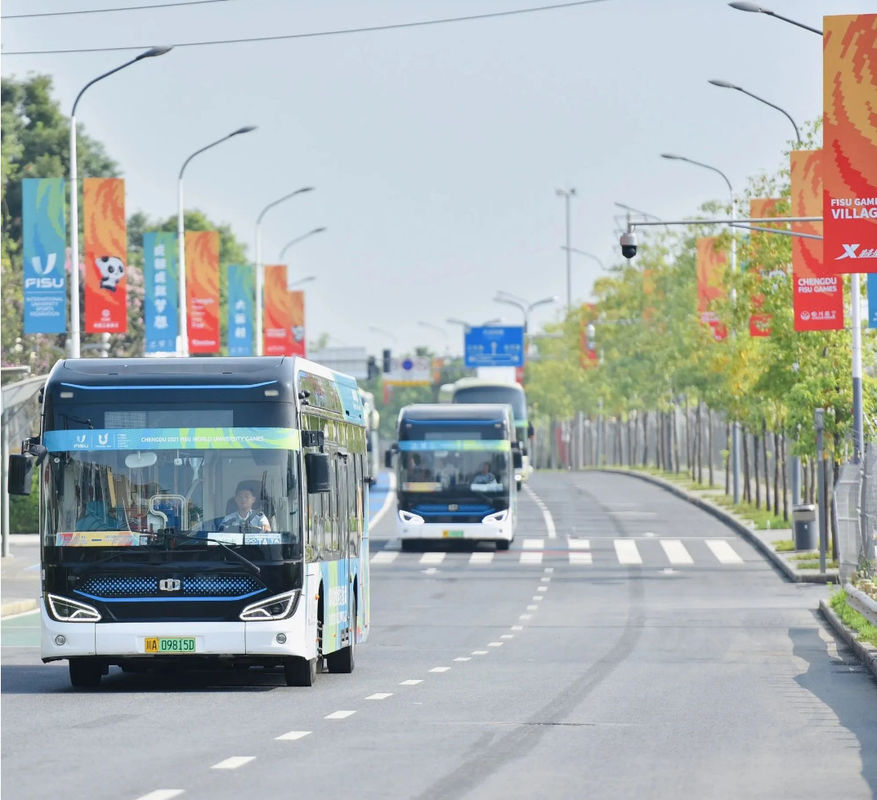

ZEV has 2 plants, annual production capacity reach 25000units. ZEV has formed a 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was rewarded 825 units 12m full electric city bus bidding of Chengdu Transport Cooperation, among which 400units were in service during the 31st FUSU World University Games.



12m Pure Electric City Bus low floor city bus 47 seats single deck bus 1
