Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
CDL6121URBEV
12m Low Entry Floor EV Battery Electric Bus With Air Suspension
This is our latest model
Special design for local transport company
400units will serve the coming Chengdu Universiade
Electric city bus is committed to creating a caring, comfortable and safe driving environment, making the interaction between people and vehicles more pleasant and smoothly, and making drivers enjoy the new intelligent travel ecology. The city is empowered by new energy; it integrates sharp design concepts to highlight fashion aesthetics; it gathers cutting-edge technology to decorate smart cities.
Specification
| Overall specs | Passenger capacity | 94/22-46 seats | Motor specs | Manufacturer | ZEV | |
| Vehicle size (mm) | 12000*2550*3225 | Model | -- | |||
| Wheel base (mm) | 6200 | Position | rear | |||
| Front/Rear overhang | 2700/3100 | Engine type | -- | |||
| Front/Rear tread | 2119/1887 | Max.power(kw/rpm) | 240 | |||
| Approach/Departure(º) | 8/8 | Max. torque (N.m/rpm) | 2800 | |||
| Max. Grade-ability(%) | 15% | Displacement(L) | -- | |||
| Top speed (km/h) | 69km/h | Fule | Electric | |||
| Curb weight (kg) | 11800 | Emission | -- | |||
| Gross weight (kg) | 18000 | |||||
| Battery | 350.07 kwh,LiFePo4, water cool. with monitoring system. | |||||
| Charging holder |
Single or Double optional. Full charging 3.1h single / 1.6h double |
|||||
| Driving range | 280-650km | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | 7.5T | ||||
| Rear axle | 13T | |||||
| Transmission | Auto transmission | |||||
| Suspension |
Import air suspension, SACHS shock absorber ECAS |
|||||
| Steering | BOSCH 8098 steering | |||||
| Braking | KNORR brake system, disc brake and maintenance free | |||||
| Tyre | 275/70R22.5 aluminum rim | |||||
| Battery | Maintenance-free type 2*195Ah | |||||
| electronics | AC | 32000kcal/h with air purifier | ||||
| Defroster | Electric heater , 4 PTC radiator | |||||
| Instrument | CAN BUS LINE. LCD instrument | |||||
| Audio-system | 2 pcs LCD display | |||||
| Lights | LED combination lights | |||||
| Monitoring system | CCTV system with 10 cameras | |||||
| Route board | Front, rear and side LCD screen | |||||
| Driver assistance system |
ADAS HSA EPB ASR ESC CBS AEBS AutoHold |
|||||
| Bus facilities | Body | Electro coating. | ||||
| Passenger door | Front aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 28 plastic city bus seats with cushion | |||||
| Interior | aluminum-plastic | |||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS | |||||

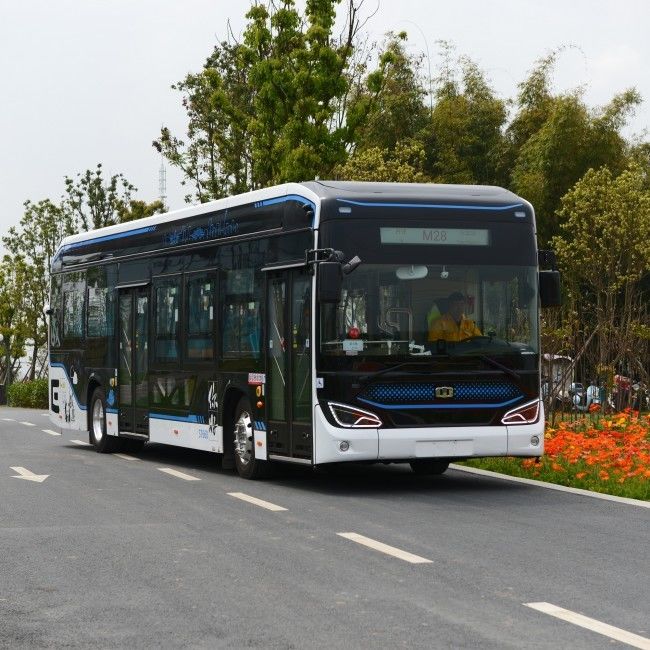

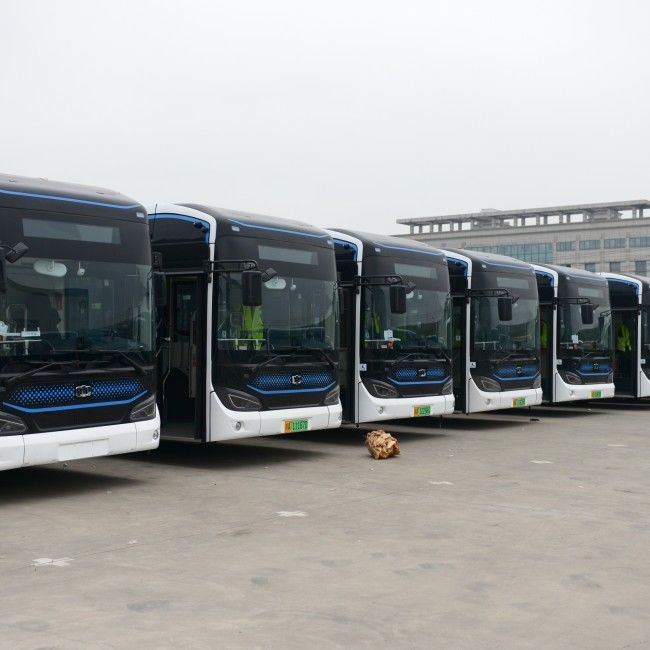

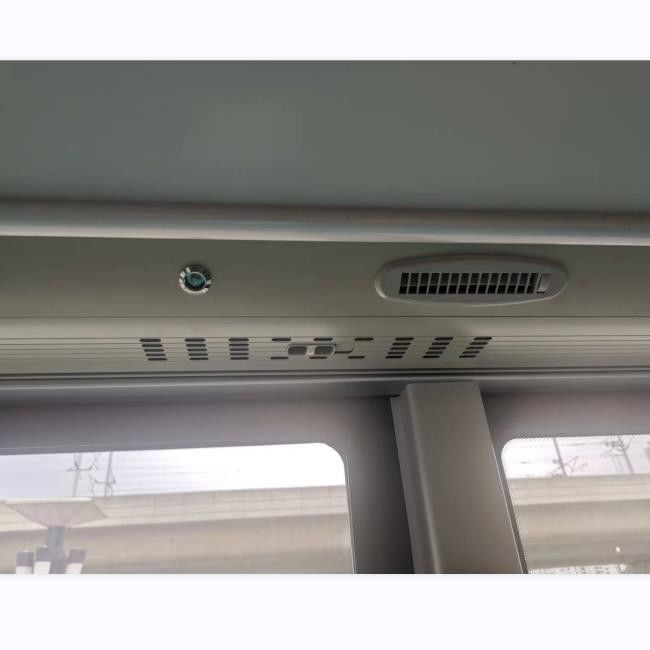

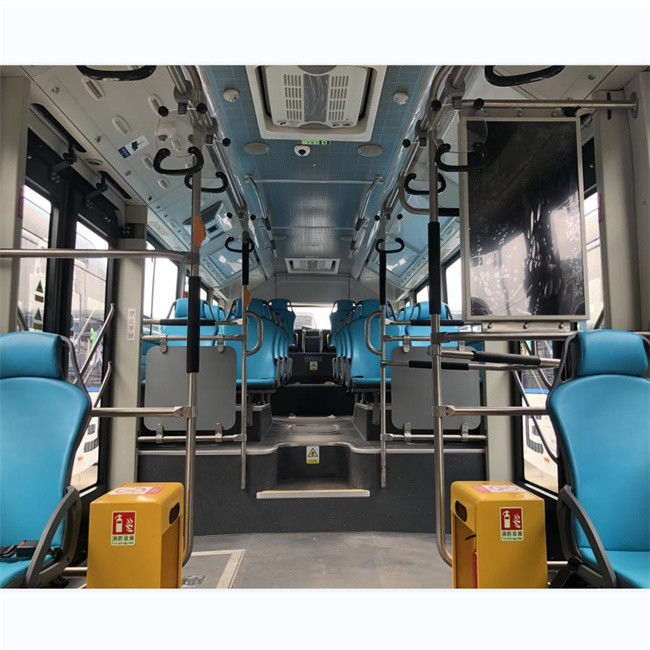

Pictures for reference
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
Send your inquiry directly to us
