Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
CDL6810URBEV
video
video
video
Two Doors 8m 198.4kwh Max 29 Seats Full Electric Battery Electric Buses Long Urban City Buses
Description:
It adopts high-efficiency permanent magnet synchronous electric drive system and lithium iron phosphate power battery, which has the advantages of safety, reliability, high efficiency and energy saving, and intelligent control.Through the intelligent management of vehicle control, motor drive, and energy management,as well as the precise optimization of control strategies, the vehicle's power, economy and comfort can reach the best balance.
Specs
| Overall specs | Passenger capacity | 61 (14-29 seats) | Motor specs | Manufacturer | ZEV | |
| Vehicle size (mm) | 8095*2400*3150 | Model | ZEV | |||
| Wheel base (mm) | 4200 | Position | rear | |||
| Front/Rear overhang | 1865/2030 | Motor type | PMSM | |||
| Front/Rear tread | 1992/1802 | Max.power(kw/rpm) | 170 | |||
| Approach/Departure(º) | 8/10 | Max. torque (N.m/rpm) | 1700 | |||
| Max. Grade-ability(%) | ≥15% | Displacement(L) | -- | |||
| Top speed (km/h) | 69km/h | Fuel | Electric | |||
| Curb weight (kg) | 7400 | Emission | -- | |||
| Gross weight (kg) | 13700 | |||||
| Battery | 198.4 kwh,LiFePo4 | |||||
| Cruising range | ≥250km | |||||
| Charging time | Within 2h | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | DANA | ||||
| Rear axle | DANA | |||||
| Transmission | Auto transmission | |||||
| Suspension | Leaf spring | |||||
| Steering | Integral power steering, elector-hydraulic power steering | |||||
| Braking | Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster | |||||
| Tyre | 265/70R19.5 14PR steel rim Tubeless radial tire | |||||
| Battery | Maintenance-free type | |||||
| electronics | AC | 20000kcal/h | ||||
| Defroster | Electric | |||||
| Instrument | CAN Bus Line | |||||
| Audio-system | MP5 | |||||
| Lights | Front and rear combination light. Fog light. | |||||
| Monitoring system | CCTV system with 6 cameras | |||||
| Route board | Front, rear and side LED type | |||||
| Bus facilities | Body | Cathode coating. | ||||
| Passenger door | Front aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 14-29 plastic city bus seats | |||||
| Interior |
PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate. |
|||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, connector for payment machine,WIFI , Travelling record with GPS | |||||

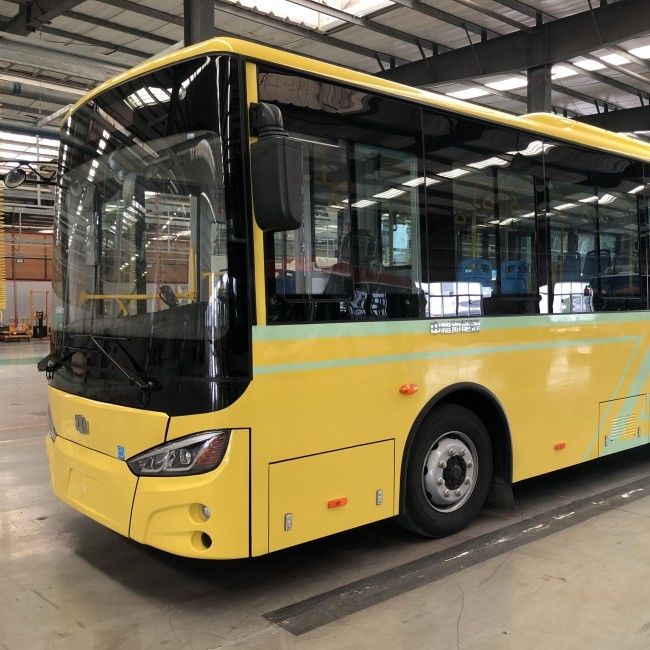

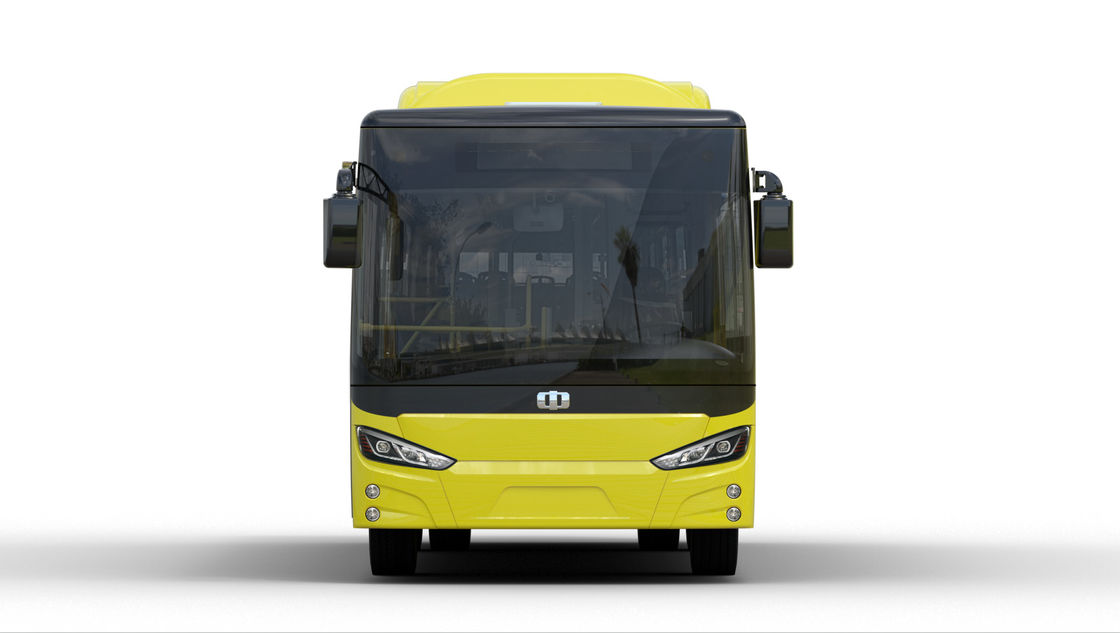

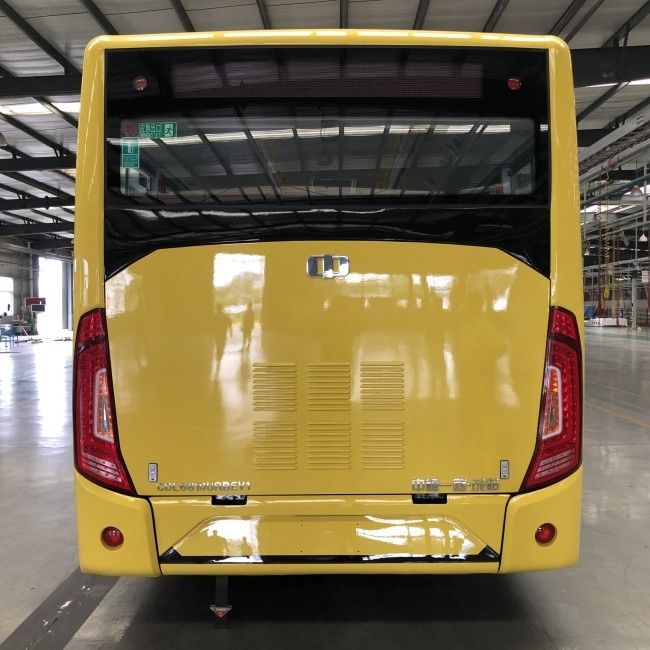

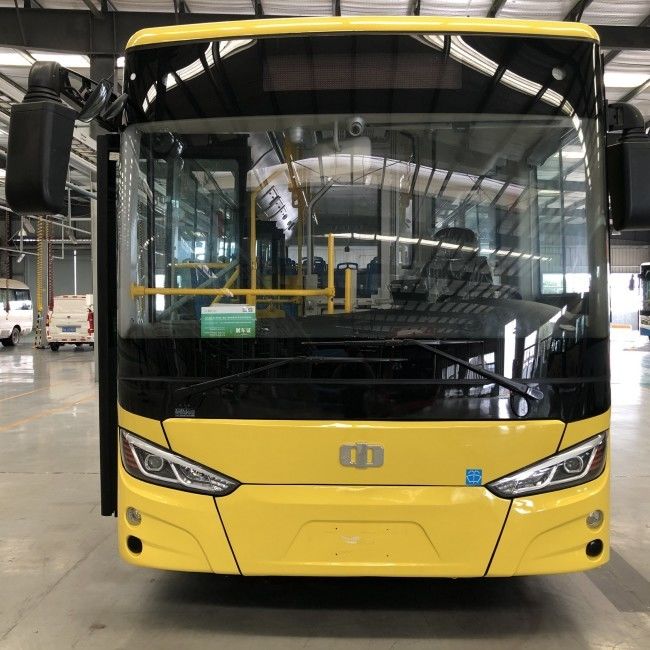

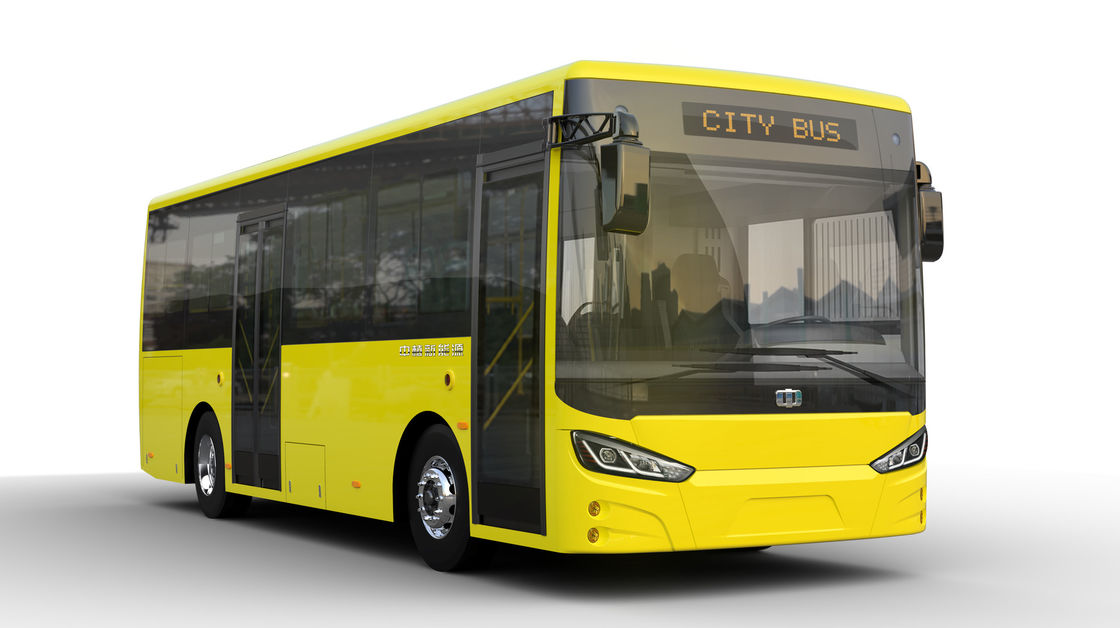

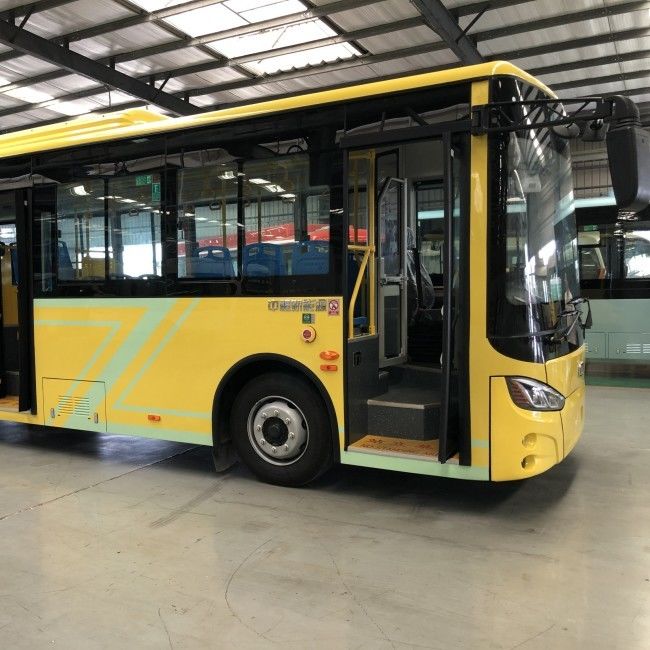

Pictures for reference
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and coaches CBU, KD kit, Chassis and Body frames
3. Spare parts including various charger for EV
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
