Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
CDL6810LRBEV

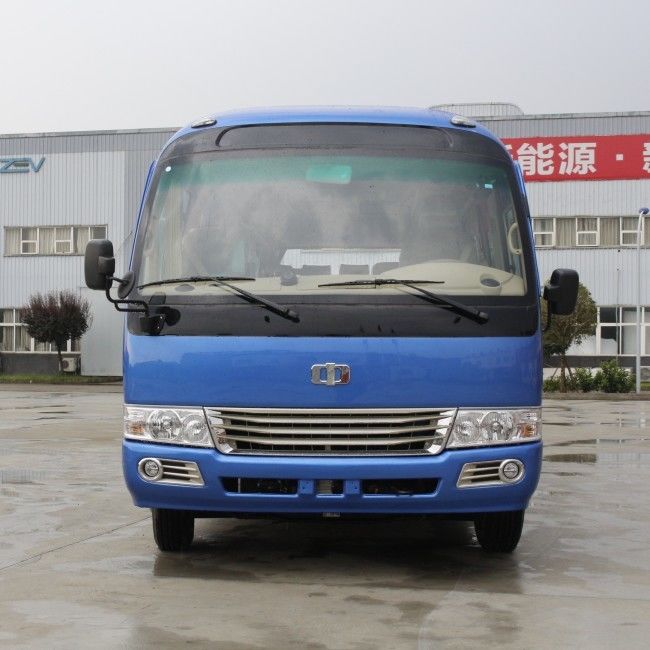

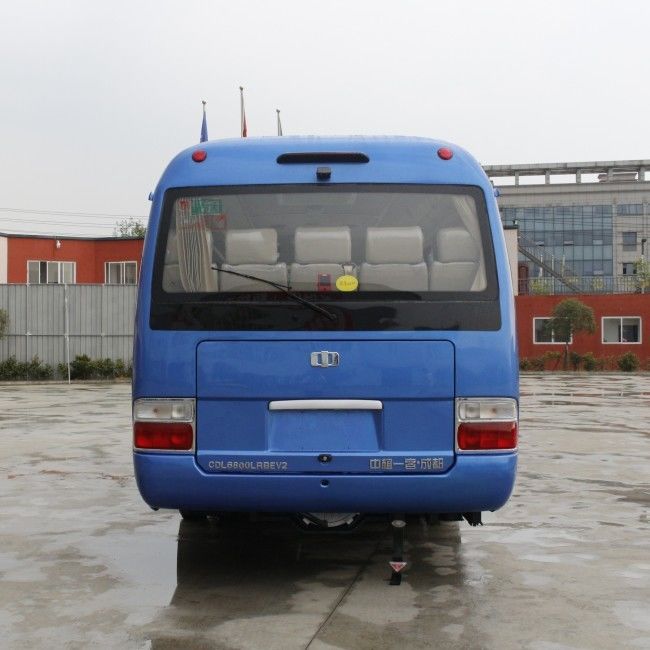

Luxury Electric Coaster Bus Customized Electric Coach Bus Coaster 32 Seats
This is an upgrade version with bigger battery capacity and passenger capacity
Specs
| Overall specs | Passenger capacity | 24-32 seats | Motor specs | Manufacturer | ZEV |
| Vehicle size (mm) | 8045*2185*2750 | Model | ZEV | ||
| Wheel base (mm) | 4500 | Position | Rear | ||
| Front/Rear overhang | 1135/2410 | Motor type | PMSM | ||
| Front/Rear tread | 1870/1650 | Max.power(kw/rpm) | 180 | ||
| Approach/Departure(º) | 17/9 | Max. torque (N.m/rpm) | 2000 | ||
| Max. Grade-ability(%) | ≥20% | Displacement(L) | -- | ||
| Top speed (km/h) | 100km/h | Fuel | Electric | ||
| Curb weight (kg) | 5800 | Emission | -- | ||
| Gross weight (kg) | 9000 | ||||
| Battery | 114.5 kwh,LiFePo4 | ||||
| Cruising range | ≥200km | ||||
| Charging Time | Within 2 hours | ||||
| Item | Specs | Remarks | |||
| Chassis | Front axle | DANA | |||
| Rear axle | DANA | ||||
| Transmission | Auto transmission | ||||
| Suspension | Leaf spring | ||||
| Steering | Integral power steering | ||||
| Braking | Front disc and rear drum ; dual circuit air brake, WABCO ABS, slack adjuster | ||||
| Tyre | 215/75R17.5 steel rim Tubeless radial tire | ||||
| Battery | Maintenance-free type | ||||
| electronics | AC | 18000kcal/h | |||
| Defroster | yes | ||||
| Instrument | Bus instrument, English system | ||||
| Audio-system | MP5 TV | ||||
| Lights | Front and rear combination light. Fog light. | ||||
| Monitoring system | CCTV system with 5 cameras | ||||
| Bus facilities | Body | Semi-loaded | |||
| Passenger door | Front aluminum door | ||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | ||||
| Passenger seat | 18 artificial leather passenger seats | ||||
| Interior | PVC duct, PVC composite side plate. | ||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | ||||
| Paint | Solid paint | ||||
| Others | Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,travel record with GPS | ||||
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
