Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
CDL6121URBEV

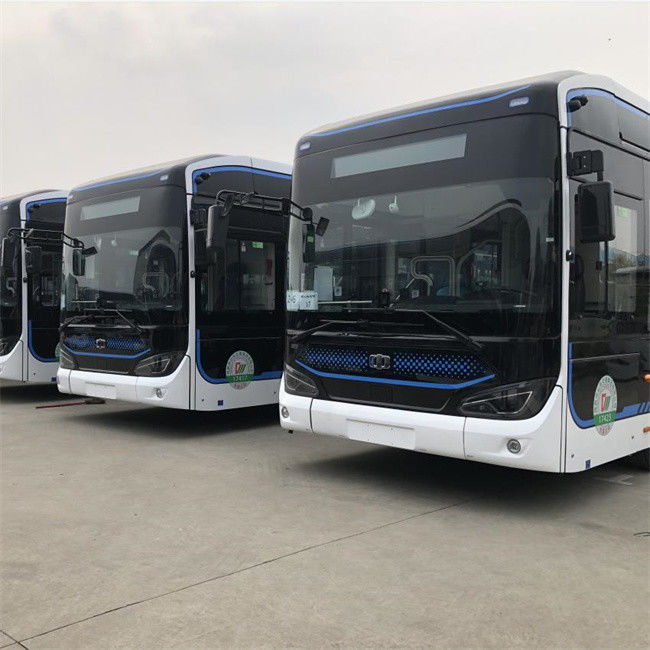

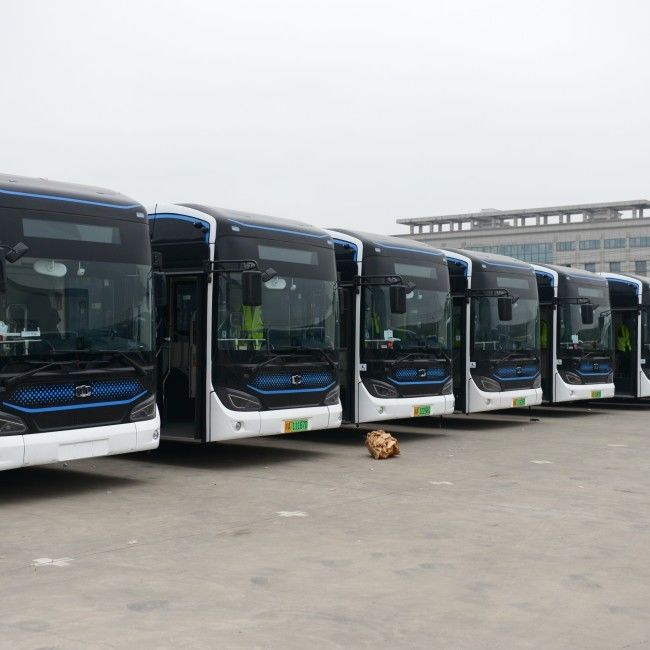

12m Low Entrance Floor Pure Electric City Bus Long Distance For SKD Assembly Project
This model adapts low floor stepping, convenient for passenger flow. High voltage electric control components are placed in the rear cabin. Electric air compressor, steering assist pump are placed behind the rear wheel. AC installed on the middle roof, 4 battery packs are placed on the front part of bus roof to adjust axle loading distribution so that balance wearing of front and rear tyre
Specification
| Overall specs | Passenger capacity | 94/22-46 seats | Motor specs | Manufacturer | ZEV | |
| Vehicle size (mm) | 12000*2550*3225 | Model | -- | |||
| Wheel base (mm) | 6200 | Position | rear | |||
| Front/Rear overhang | 2700/3100 | Engine type | -- | |||
| Front/Rear tread | 2119/1887 | Max.power(kw/rpm) | 240 | |||
| Approach/Departure(º) | 8/8 | Max. torque (N.m/rpm) | 2800 | |||
| Max. Grade-ability(%) | 15% | Displacement(L) | -- | |||
| Top speed (km/h) | 69km/h | Fule | Electric | |||
| Curb weight (kg) | 11800 | Emission | -- | |||
| Gross weight (kg) | 18000 | |||||
| Battery | 350.07 kwh,LiFePo4, water cool. with monitoring system. | |||||
| Charging holder |
Single or Double optional. Full charging 3.1h single / 1.6h double |
|||||
| Driving range | 280-650km | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | 7.5T | ||||
| Rear axle | 13T | |||||
| Transmission | Auto transmission | |||||
| Suspension |
Import air suspension, SACHS shock absorber ECAS |
|||||
| Steering | BOSCH 8098 steering | |||||
| Braking | KNORR brake system, disc brake and maintenance free | |||||
| Tyre | 275/70R22.5 aluminum rim | |||||
| Battery | Maintenance-free type 2*195Ah | |||||
| electronics | AC | 32000kcal/h with air purifier | ||||
| Defroster | Electric heater , 4 PTC radiator | |||||
| Instrument | CAN BUS LINE. LCD instrument | |||||
| Audio-system | 2 pcs LCD display | |||||
| Lights | LED combination lights | |||||
| Monitoring system | CCTV system with 10 cameras | |||||
| Route board | Front, rear and side LCD screen | |||||
| Driver assistance system |
ADAS HSA EPB ASR ESC CBS AEBS AutoHold |
|||||
| Bus facilities | Body | Electro coating. | ||||
| Passenger door | Front aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 28 plastic city bus seats with cushion | |||||
| Interior | aluminum-plastic | |||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS | |||||

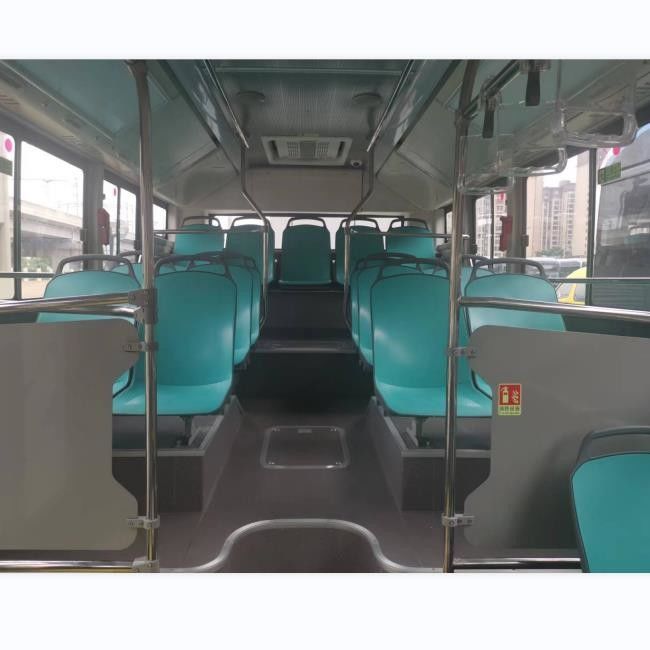

Pictures for reference
User-friendly interface and floating buttons.

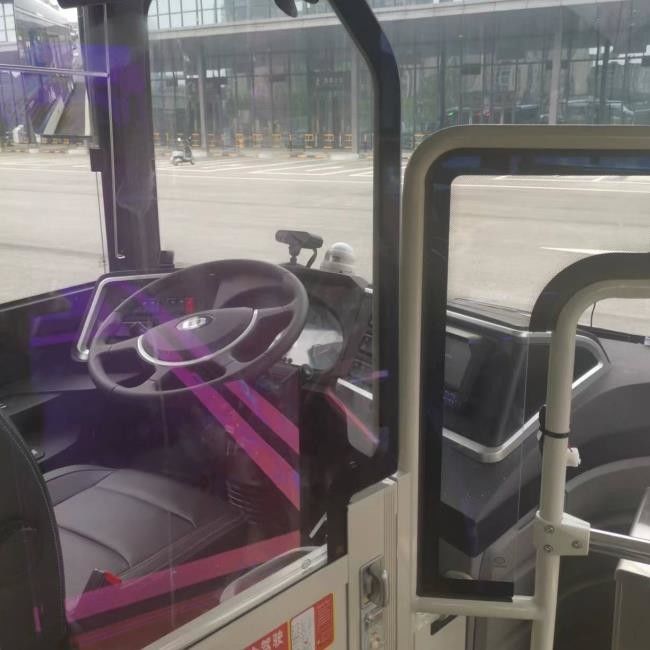

Separation door with eco-friendly materials prevents the driver from disturbance while driving.
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
