Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
CDL6180URBEV
video

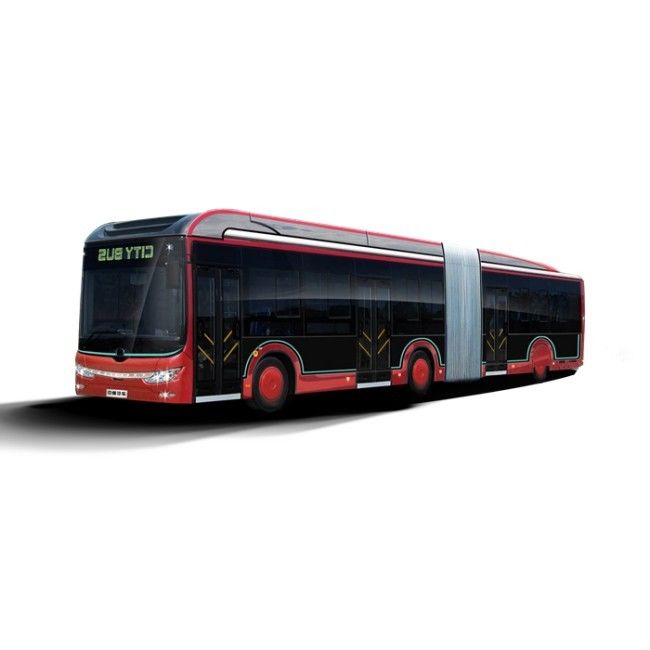

18m Electric Powered Bus Inner City Bus Pure Electric City Bus With Fire Distinguisher
Specs
| Overall specs | Passenger capacity | 158(32-50seats) | Motor specs | Manufacturer | ZEV | |
| Vehicle size (mm) | 18000×2550×3480 | Model | -- | |||
| Wheel base (mm) | 5900+6100 | Position | rear | |||
| Front/Rear overhang | 2600/3400 | Motor type | PMSM | |||
| Front/Rear tread | 2110/1910/1860 | Max.power(kw/rpm) | 200 | |||
| Approach/Departure(º) | 8/7 | Max. torque (N.m/rpm) | 1150 | |||
| Max. Grade-ability(%) | 15% | Displacement(L) | -- | |||
| Top speed (km/h) | 69km/h | Fuel | Electric | |||
| Curb weight (kg) | 17700 | Emission | -- | |||
| Gross weight (kg) | 28000 | |||||
| Battery | 258.4 kwh,LiFePo4 | |||||
| Charging time |
Single or Double optional. Full charging 3h single / 1.5h double |
|||||
| Driving range | 280-650km | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | 8T | ||||
| Supporting axle | 8T | |||||
| Rear axle | 13T | |||||
| Transmission | Auto transmission | |||||
| Suspension | F2/R4, Non-independent air suspension | |||||
| Steering | Integral power steering, elector-hydraulic power steering | |||||
| Braking | Front & rear disc air brake, spring actuated and air cut-off parking ,with WABCO ABS | |||||
| Tyre | 275/70R22.5 aluminum rim | |||||
| Battery | Maintenance-free type 2*195Ah | |||||
| electronics | AC | 2 units roof-mounted cooling AC. 21/28kw | ||||
| Defroster | Electric heater | |||||
| Instrument | CAN BUS LINE. LCD instrument | |||||
| Audio-system | 2 pcs LCD display | |||||
| Lights | LED combination lights | |||||
| Monitoring system | CCTV system with 10 cameras | |||||
| Route board | Front, rear and side LCD screen | |||||
| Bus facilities | Body | Cathode coating. | ||||
| Passenger door | Front aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 28 plastic city bus seats with cushion | |||||
| Interior | aluminum-plastic | |||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS | |||||
Pictures for reference
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
