Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO, PNS Class 2
Model Number:
CDL6730URDE

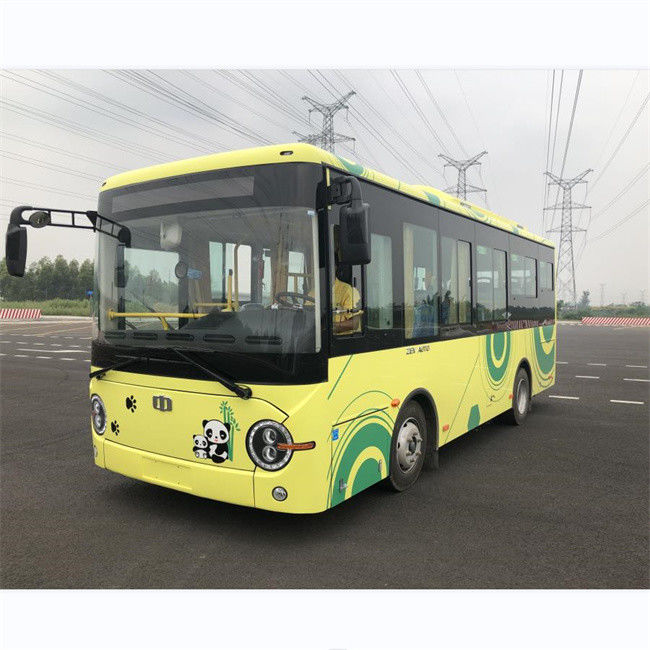

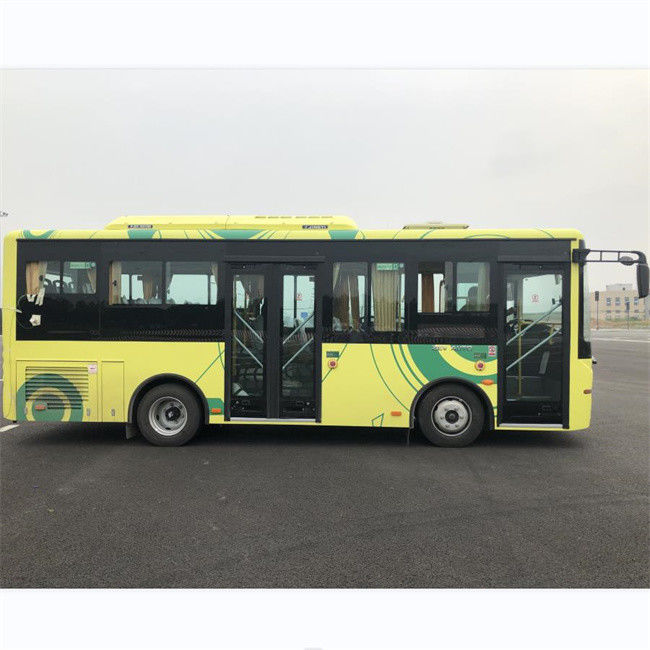

25 Seats Diesel City Bus Emission IV Air Conditioned
We built some unique, the shortest rear engine city bus.
Compared with front engine model, it is more convenient for passenger to get on and off.
Bigger passenger capacity and more comforable rideing experience.
Less fuel comsuption
With PNS Class 2 certificate for PH market
Specs
| Overall specs | Passenger capacity | 40 (24+1 seats) | Engine specs | Manufacturer | Yuchai | |
| Vehicle size (mm) | 7310*2200*2900 | Model | YC4FA130-40 | |||
| Wheel base (mm) | 3380 | Position | rear | |||
| Front/Rear overhang | 1740/2190 | Engine type | 4 cylinders inline | |||
| Front/Rear tread | 1850/1681 | Max.power(kw/rpm) | 95 | |||
| Approach/Departure(º) | 8/8 | Max. torque (N.m/rpm) | 340 | |||
| Max. Grade-ability(%) | ≥20% | Displacement(L) | 2.982 | |||
| Top speed (km/h) | 69km/h | Fule | Diesel | |||
| Curb weight (kg) | 6000 | Emission | IV | |||
| Gross weight (kg) | 8700 | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | DANA 3.5T | ||||
| Rear axle | DANA 5.5T | |||||
| Transmission | Manual 5 gears | |||||
| Suspension | Leaf spring | |||||
| Steering | Integral power steering, elector-hydraulic power steering | |||||
| Braking | Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster | |||||
| Tyre | 215/75R17.5 steel rim Tubeless radial tire | |||||
| Battery | Maintenance-free type | |||||
| electronics | AC | 14000kcal/h | ||||
| Defroster | yes | |||||
| Instrument | Bus instrument, English system | |||||
| Audio-system | MP5 | |||||
| Lights | Front and rear combination light. Fog light. inner dome light, step light. | |||||
| Monitoring system | CCTV system with 6 cameras | |||||
| Route board | Front LED type | |||||
| Bus facilities | Body | 2 steps-entrance | ||||
| Passenger door | Front and middle aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 24 plastic city bus seats | |||||
| Interior |
PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate. |
|||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,reserved connector for payment machine,WIFI. Travelling record with GPS | |||||
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
