Place of Origin:
Chengdu, China
Brand Name:
ZEVAUTO
Certification:
ISO
Model Number:
CDL5021XXYBEV2
video

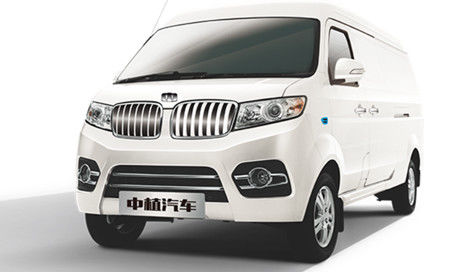

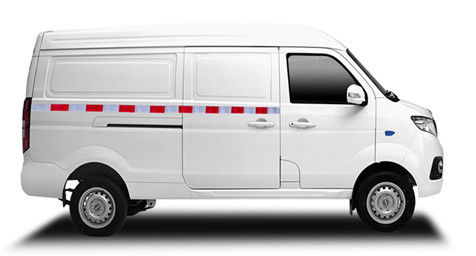

| Vehicle Name | Pure electric van | ||
| Vehicle Type |
van |
||
| Overall parameter |
Vehicle size (mm) |
4495×1680×1990 | |
| Wheel base (mm) | 2925 | ||
| Front/Rear tread | 1425/1435 | ||
| Curb weight (kg) | 1360 | ||
| Rated load(kg) | 1020 | ||
| Gross weight (kg | 2510 | ||
| Driving cab(seats) | 2 | ||
| Chassis | Front suspension type |
independent suspension |
|
| Rear suspension type | Leaf spring, rigid axle suspension | ||
|
Front/Rear overhang(mm) |
660/910 | ||
| Front axle/rear axle load(kg) | 1010/1500 | ||
| Braking | Oil pressure assisted brake | ||

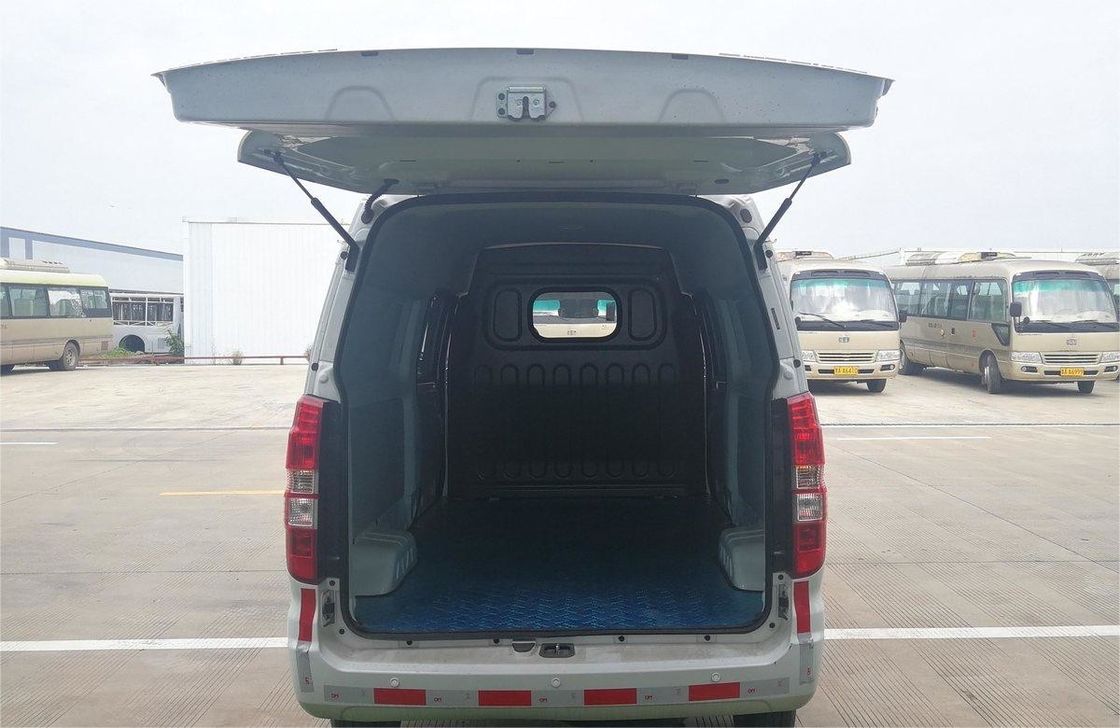

| Boxcar parameters | Container size(mm) | 2355×1475×1325 | |
| Container volume(m³) | 4.7 | ||
| Electronic | Top speed (km/h) | 90 | |
| Driving range(km) | 271 | ||
| Battery Capacity (kWh) | 41.86 | ||
| Battery energy density(Wh/kg) | 137.6 | ||
| Fast charge/slow charge(h) | Support | ||
| Battery type |
LifePO4 |
||
| Battery brand | / | ||
| Rate/Peak power(kW) | 30/60 | ||
| Max. torque(N·m) | 220 | ||
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.
3. Spare parts including various charger for EV.
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
Send your inquiry directly to us
